Introduction

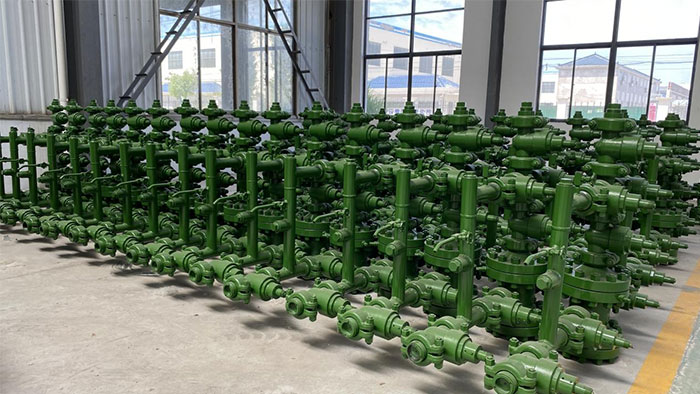

The Christmas Tree is a key equipment in the oil production process, used to control the fluid at the wellhead and provide an interface to connect the wellhead equipment and pipeline system. It plays a vital role in the oil production process, ensuring the safe and efficient production of oil and gas.
Components of the Christmas Tree
Valves
Master Valve: Located at the bottom of the Christmas tree, used to control the total flow of the production pipeline.
Wing Valve: Installed on the wing pipeline, used to control the outlet flow of the fluid.
Injection Valve: Used to inject chemicals, gas or water to improve production or increase production.
Safety Valve (SSV): An automatically closed emergency valve that closes in the event of abnormal pressure or flow.
Pipeline
Main pipeline: The pipeline system connecting the wellhead and the surface equipment, usually made of high-strength alloy steel, capable of withstanding high pressure and corrosive media.
Connectors
Joints and flanges: used to connect various parts, they need to have good sealing performance to ensure no leakage.
Measuring instruments
Pressure sensor: used to measure the pressure at the wellhead, convert the pressure signal into an electrical signal, and transmit it to the surface equipment for monitoring and control.
Temperature sensor: used to measure the temperature at the wellhead to ensure the safety of the production process.
Flow-meter: used to measure the fluid flow at the wellhead and provide a basis for production regulation.
Key Components and Functions of a Christmas Tree
| Component | Description | Function |
|---|---|---|
| Wellhead | The base structure that connects the Christmas tree to the wellbore. | Provides a secure connection to the well and supports the weight of the Christmas tree. |
| Master Valve | A large, manually operated valve located at the base of the Christmas tree. | Controls the primary flow of fluids from the well to the surface production system. |
| Wing Valves | Located on either side of the master valve. | Allow for the diversion of fluids to different production lines or for isolation during maintenance. |
| Choke Valve | A smaller, adjustable valve used to control the flow rate. | Regulates the pressure and flow of fluids from the well to prevent blowouts and manage production. |
| Swab Valve | A special valve used for wireline operations. | Allows tools and equipment to be inserted into the well without losing pressure or spilling fluids. |
| Blowout Preventer (BOP) Connector | A component that connects the Christmas tree to the BOP stack. | Ensures safety by providing a secure connection to the blowout preventer during drilling and workover operations. |
| Pressure Gauges | Instruments mounted on the Christmas tree. | Monitor the pressure of fluids in the well, providing critical data for safe and efficient operations. |
| Side Outlet | Additional ports on the Christmas tree. | Used for secondary production lines, testing, or venting excess pressure. |
| Safety Valves | Automatic valves designed to close in case of emergency. | Prevent uncontrolled release of fluids in case of equipment failure or loss of control. |
The Operating Principle of Christmas Tree
Well sealing: After the well is drilled, well sealing is required to seal the oil and gas in the wellbore. At this time, the main valve of the Christmas tree is closed to prevent oil and gas from entering the Christmas tree from the wellbore.
Output control: When oil and gas need to be produced, the main valve is opened to allow oil and gas to enter the Christmas tree from the wellbore. The pressure and flow of the fluid are adjusted by the control valve to control the output.
Fluid processing: The oil and gas entering the Christmas tree may contain impurities, moisture or other impurities. In order to protect the normal operation of subsequent equipment and pipeline systems, the fluid needs to be processed. Separators are usually used for oil and gas separation and further processing.
Pressure protection: Safety devices and pressure sensors in the Christmas tree ensure stable wellhead pressure to prevent blowouts.
Separation and transportation: The fluid is transported to the ground processing facility through the export pipeline for oil and gas separation and further processing.
The Role of Christmas Trees in Oil and Gas Production
Flow control: Regulate the flow of oil, gas and water in the wellbore to ensure the stability of the production process.
Safety assurance: Shut down oil and gas wells in an emergency to protect equipment and personnel.
Pressure management: Maintain the stability of wellhead pressure to avoid blowouts or equipment damage.
Testing and monitoring: Collect production data, including pressure, temperature and flow parameters, to provide a basis for production regulation.
Operation convenience: Provide an interface for water injection, gas injection, acidizing and other well repair operations to facilitate maintenance and intervention operations.
Challenges in Practical Applications
Harsh working environment: Christmas trees need to operate for a long time in high pressure, high temperature and corrosive environments, which places extremely high demands on the sealing strength, material pressure bearing capacity and process quality of the equipment.
Deep-water mining: Deep-water Christmas trees are larger in size and weight, have more control and management interfaces, and more complex systems. They are difficult to develop and have high technical barriers. Only a few countries in the world have mastered their key core technologies.
Maintenance and care: Due to the complexity and importance of Christmas trees, regular maintenance and care are required to ensure their normal operation. This not only increases operating costs, but also places high demands on the technical level of maintenance personnel.
Conclusion
Christmas trees are key equipment in oil and gas extraction. They have complex structures and diverse functions, and are essential to ensure safe and efficient extraction of oil and gas. With the continuous advancement of technology, the design and manufacturing of Christmas trees are also being optimized to cope with increasingly harsh working environments and higher production requirements. In the future, with the development of deep-water and ultra-deep-water oil and gas fields, Christmas tree technology will continue to develop and provide strong support for global energy supply.
FAQ
What are the main functions of the Christmas tree?
The main functions of the Christmas tree include flow control, safety assurance, pressure management, testing and monitoring, and easy operation.
What are the components of the Christmas tree?
The Christmas tree consists of a main valve, a wing valve, an injection valve, a safety valve, a pressure sensor, a temperature sensor, a flow meter, a tubing head, a tubing hanger, and a flange.
How does the Christmas tree work?
The Christmas tree controls the inflow and outflow of oil and gas through the main valve, adjusts the pressure and flow of the fluid through the control valve, protects the equipment from overpressure damage through the safety valve, and monitors the pressure, temperature, and flow at the wellhead through measuring instruments.
What are the challenges facing the Christmas tree?
The challenges facing the Christmas tree include harsh working environments, the complexity of deepwater production, and high requirements for maintenance and upkeep.
What are the future development trends of the Christmas tree?
The future development trends of the Christmas tree include intelligent, high-reliability design, and further development of deep-sea oil production technology
