18CrMo4 Alloy Steel
Qilu is an 18CrMo4 alloy steel manufacturer that offers a wide selection of sizes, shapes, and thicknesses.
Professional 18CrMo4 Alloy Steel Supplier
18CrMo4 (1.7243) is an alloy structural steel with good process and welding properties. It has high enduring strength in the temperature range of 500 to 550°C. However, when the temperature exceeds 550°C, its oxidation resistance decreases, and its creep strength is significantly reduced. The thermal strength and strength of 18CrMo4 steel decrease during prolonged exposure to 500 to 550°C. This material is commonly used in the manufacture of high and medium-pressure steam conduits and header tanks at 510°C, as well as superheaters and forgings with wall temperatures of 550°C.
Shape Customization
Rolled size range: 10-260mm
Forged size range: 70-800mm
Thickness size range: 10-500mm
Width size range: 200-810mm
Outer diameter sizes up to 1000mm
Grade of Different Countries and Chemical Composition
Chemical composition:
| C | Si | Mn | S | P | Cr | Ni |
| 0.15%-0.21% | ≤0.40% | 0.60%-0.90% | ≤0.035% | ≤0.035% | 0.90%-1.20% | ≤0.030% |
Surface condition
Qilu Alloy Steel Series
Application Of 18CrMo4 Alloy Steel
Mechanical Manufacturing
Used in the manufacture of higher grade carburised parts such as gears, shafts, etc., which usually require good wear resistance and load bearing capacity.
Luft- und Raumfahrt
Due to its high strength and heat resistance, 18CrMo4 is also suitable for some parts in the aerospace sector.
Automotive industry
Used in the manufacture of various high-strength components in automobiles, such as engine and drive train components.
Chemical industry
Suitable for the manufacture of high-pressure pipes and various fasteners, these parts need to withstand high temperatures and corrosive media in chemical production.

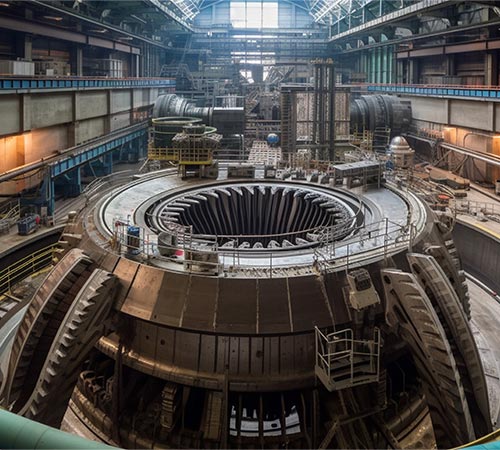

Boiler and turbine manufacturing industry
For the production of bulkheads, blades, forgings, etc., these parts need to withstand high temperatures and pressures in the operation process.
Qilu 18CrMo4 Alloy Steel
Your Excellent 18CrMo4 Alloy Steel Manufacturer
18CrMo4 alloy steel, also known as ASTM5140, is commonly used to manufacture gears, shaft mechanical parts, aerospace parts, high-strength parts for automobiles, pipes and components, etc.
Since 18CrMo4 alloy steel has good strength and heat resistance, you can use this material in a high-temperature environment without worrying about it being easily damaged.
Contact us now to buy it!
