Wellhead assembly
The wellhead device is used to control the pressure and direction of gas and liquid fluids. Its components include tubing heads, blowout preventer kits, etc.
Professional Wellhead assembly Supplier
Wellhead devices are devices used to control the pressure and direction of gas and liquid fluids, including Christmas trees and gas trees. Wellhead devices are the gateway to oil wells and play a vital role in the safe production of oil wells. With the development of oil and gas exploration and development, wellhead devices have gone through a development process from onshore to offshore and from above water to underwater.
Main Functions
Structural Support and Sealing:
The Wellhead Assembly supports the weight of technical and production casing, transferring it to the wellhead structure, and provides sealing elements to control wellbore pressure effectively, preventing oil and gas leaks.
Pressure Management and Safety:
Equipped with various valves such as throttle and gate valves, the Wellhead Assembly controls downhole pressure to ensure the safety of drilling and production processes, and includes interfaces for downhole equipment like blowout preventers (BOP) to further manage pressure and hydrocarbon flow.
Adaptability and Operational Flexibility:
Designed to adapt to varying downhole conditions including pressure, temperature, and corrosive environments, the Wellhead Assembly ensures long-term stable operation and facilitates the installation, testing, and replacement of downhole equipment like casing hangers and seal assemblies.
Environmental Protection and Remote Operations:
Effective in preventing blowouts and environmental pollution by controlling downhole pressure and sealing the wellbore, the Wellhead Assembly also meets the challenges of marine environments, allowing for remote installation and operation, particularly in sub-sea drilling, thus ensuring the safety and environmental integrity of oil and gas operations.
Casing Spool Rating Parameters
| Parameter Category | Description |
| Rated Working Pressure | 2000 psi to 20,000 psi |
| Grade Material | Material grades range from AA to HH. |
| Nominal Diameter | Nominal diameters range from 7 1/16″ to 30″ |
| Temperature Class | Temperature classes are usually classified as T75, T20, T0, etc. |
| Properties Requirement | Oil, gas, mud and gases containing H2S and CO2. |
| Product Specification Level | Specification levels range from PSL1 to PSL3G. |

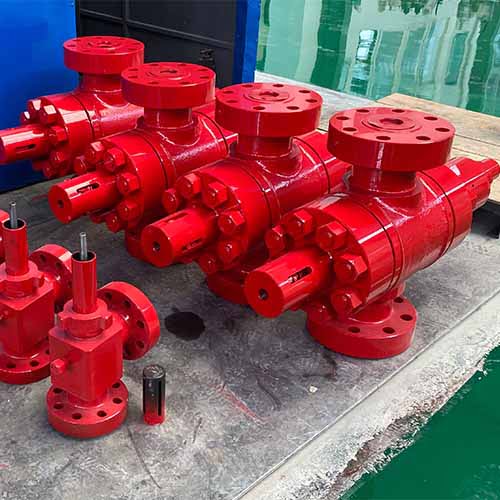

Wellhead assembly Components
Qilu Oil Exploration and Production (E&P) Products
Application of Wellhead assembly

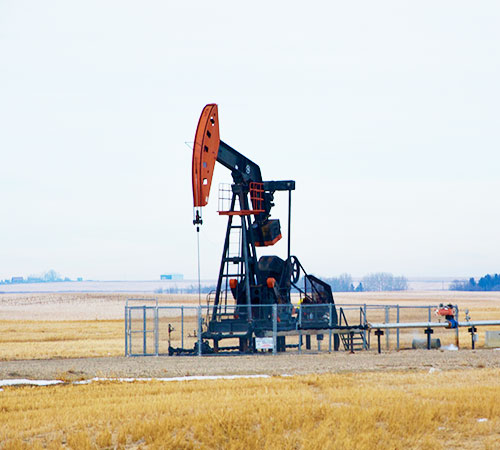

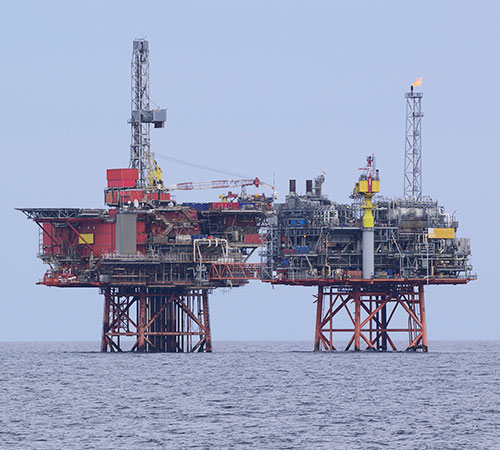

Onshore and Offshore Drilling
Wellhead components provide the necessary support and sealing for casing and tubing, and they help construction personnel to conduct drilling and production activities safely and efficiently.
Deepwater and subsea applications
In deepwater and subsea environments, wellhead components play a critical role in managing well integrity and controlling the flow of hydrocarbons, making the operating environment safer.
High-pressure operations
Wellhead assemblies provide robust sealing and pressure control, features that are critical to maintaining safety and efficiency in high-pressure production situations.
Multi-wellhead drilling
The wellhead design supports multi-wellhead drilling, an approach that reduces costs and improves operational efficiency.
Safety and Maintenance
Wellhead components perform multiple safety functions and regular maintenance of these components is critical to ensure their long-term integrity and reliability.
Testing and Monitoring
Wellhead components help test and monitor well conditions and are critical to ensuring the continued safety and performance of the well throughout its service life.
Maintenance and inspection
-Regular maintenance programme
-Maintenance of mechanical components
-Corrosion and erosion
-Seals and gaskets
-Inspection and Maintenance
-Missing components
-Stratigraphic changes
-Changes in company policy or technology
-field maintenance work
-Field Service
-maintenance costs
-Safety
-Maintenance and integrity management
-API 6A specifications
These maintenance and inspection measures help ensure the safety of oil and gas wells and extend the life of the asset.
How it works
The wellhead assembly integrates the various components through its upper and lower flanges and secures the tubing hangers. After the tubing string enters the wellbore, the tubing suspender is placed in a designated location within the wellhead assembly to ensure sealing with the packer or seal assembly. The side outlets of the wellhead assembly are used to relieve or test fluids and gases, and may also be used to inject completion fluids or to facilitate downhole intervention. The primary function of the wellhead assembly is to control the flow of hydrocarbons in the well, while its safety valve automatically relieves pressure in the event of an overpressure condition to safeguard the integrity of the well and the safety of personnel.
Qilu Wellhead Assembly
Your Excellent Wellhead Assembly Manufacturer
The Wellhead Assembly is a core piece of equipment that ensures the safety and extended production life of oil and gas wells. Regular maintenance and inspections, such as valve servicing, pressure testing and corrosion monitoring, are critical to maintaining its performance. In conclusion, the proper management and maintenance of Wellhead Assembly is critical to the sustainability of the oil and gas industry.
